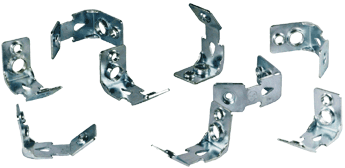

RSIC Multi Clip

RSIC Multi Clip®

The RSIC-Multi Clip is a multi use hanger. The RSIC-Multi Clip has four hanger mounts for hanger wire, pencil rod, 1/4 threaded rod and 3/8 threaded rod. With allowable hold capacity of 236 lbs the RSIC-Multi Clips versatility makes it the one and only clip that can be used throughout the project for all trades. The RSIC-Multi Clip has a flex point at the fastener position to allow attachment to a vertical surface, and angled surface, or a flat surface such as a corrugated metal deck, wood or steel joist. The RSIC Multi Clip can be shot into concrete or steel with a gas or powder system, It also can be fastened to wood and light gauge steel systems with a standard screw (verify fasteners published hold capacity meets or exceeds that of the RSIC-Multi Clip). The RSIC-Multi Clips uses include but are not limited to: Plumbing, HVAC, Electrical, Lighting, Acoustical ceilings, Gypsum Board ceilings. Etc. The RSIC-Multi Clip when used in conjunction with the RSIC-1 Noise control clip delivers superior noise control with ease of installation and adjustability for ceiling framing or concrete variances in height.

RSIC-MULTI CLIP OPTIONS

  • CEILING HANGER
  • SCREW TO WOOD
  • SCREW TO STEEL
  • SHOOT INTO CONCRETE

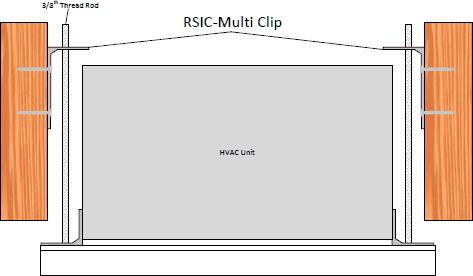

  • MECHANICAL HANGER
  • PLUMBING HANGER
  • ELECTRICAL HANGER

RSIC-MULTI CLIP APPLICATIONS

  • CONDOS
  • TIME SHARE / FRACTIONAL OWNERSHIP
  • APARTMENTS
  • HOTELS / MOTELS
  • SINGLE FAMILY
  • HOME THEATER
  • COMMERCIAL THEATER

RSIC-Multi Clip Replaces:

Erico: 4TI, 6TI, 4TIB, 6TIB, 4TIO, 6TIO, 4TIAFAB3, 6TIAFAB3, SLAFAB3

Powers Fasteners: Stick-E 1/4, Stick-E 3/8"

Ramset: 14TRHMP034, 3/8TRHMP034, 34CLIP

1/4 Threaded Rod/Bolt
3/8 Threaded Rod/Bolt
Hanger Wire
Pencil Rod

Product
Tension Allowable
Tension Ultimate
RSIC-Multi Clip
236 Lbs
1187 Lbs

Use with the RSIC-1 for a shoot in adjustable
