Soundproofing and Sound Isolation Products
Print this page

PRODUCTS

Resilient Sound Isolation Clip (RSIC-SI-CRC Pro Series®)
(Spring Isolator) NEW PRODUCT!

RSIC-SI-CRC Pro Series®

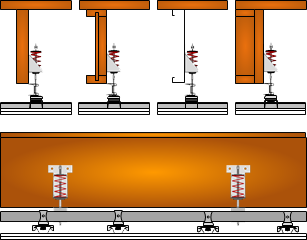

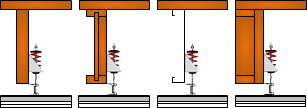

The RSIC-SI-CRC is designed to isolate the ceiling consisting of 1.5" x 16 Ga cold rolled channel and furring channel (25 or 20 Ga). The RSIC-SICRC clip is available in 10 lb, 20 lb, 40 lb, 80 lb, 120 lb and 160 lb versions. The 80 lb, 120 lb and 160 lb isolators allow for spacing at 48" x 48" oc supporting 2, 3 or 4 layers of 5/8" gypsum board. The lighter weight springs (5 lb ~ 40 lb) may be used for single layer ceilings, edge or corner isolation. The RSICSI- CRC clips unique universal mounting system allows it to be mounted to wood and steel framed systems. The RSIC-SI-CRC isolator can also be mounted to concrete with the addition of the RSICSI Overhead adapter.

RSIC-SI-CRC Product information

RSIC-SI-CRC Concrete Ceiling IIC 70 STC 84

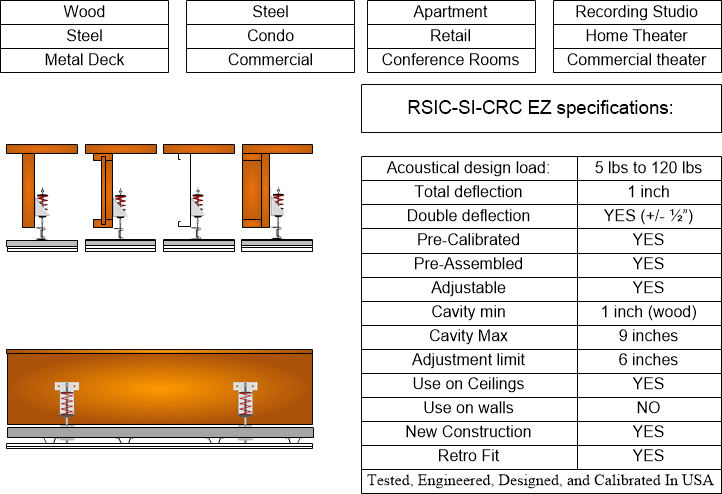

RSIC-SI-CRC with measurements

RSIC-SI-CRC with measurements line front

RSIC-SI-CRC with measurements line Pro

RSIC-SI-CRC plus RSIC-1.5CRC rubber isolator complete isolation system

RSIC-SI-CRC flier

RSIC-SI-CRC Templates





RSIC-SI-CRC




RSIC-SI-CRC with RSIC-1.5CRC clips






Verify product application before adding to UL Fire Rated Assemblies
