CMU Furring and Leveling Clip

The Leveling Clip is for ceilings, or walls. It can be attached to both CMU, Steel, Wood, or Concrete wall or ceiling systems. The clip has up to a 1 inch of adjustment available, allowing you to true a wall or ceiling. Usually only one side of a CMU or Concrete wall gets a good true line. The Leveling Clip will cover up the imperfections on the other side. It also allows for a mechanical chase between the CMU or Concrete wall, for electrical conduit and water service lines.



The Clip!

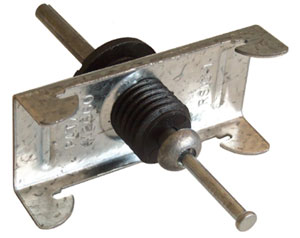

Concrete Application

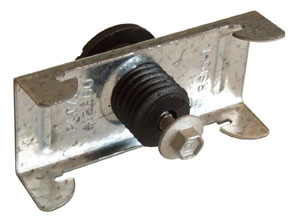

Steel Application

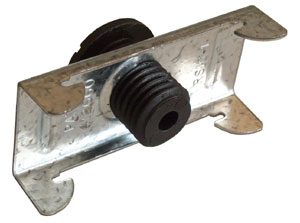

Timber Application


Leveling clip for Hambro joist with TTC and Hat


Leveling clip for Hambro joist with Cup Washer and Hat


Verify product application before adding to UL Fire Rated Assemblies
