Resilient Sound Isolation Clip for 7/8 Furring Channel
(RSIC-SI-X)

RSIC-SI-X

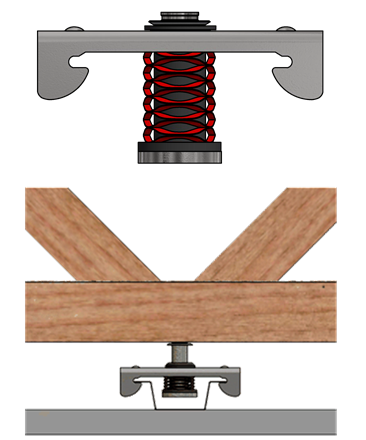

The RSIC SI-X new low profile spring isolation system is designed for use with any wood framed, steel framed, or concrete ceiling system where vibration and noise control is needed. The RSIC-SI-X assembly decouples and isolates the gypsum board or plywood from the structure with a low profile spring increasing the acoustical performance of the system. With an Acoustical design load range from 7 lbs to 25 lbs per isolator, the RSIC-SI-X clip can support up to two layers of 5/8" gypsum board. The spacing at 16" x 48" oc is the same for 1 or 2 layers of gypsum board.

RSIC-SI-X Product Flier
RSIC-SI-X Install Guide

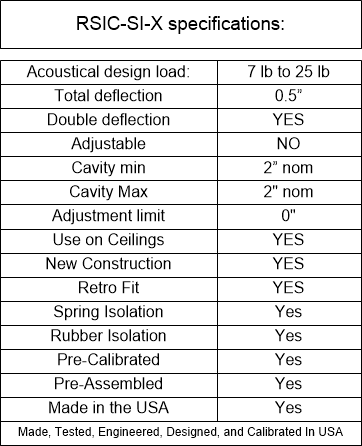

RSIC-SI-X Product Specification

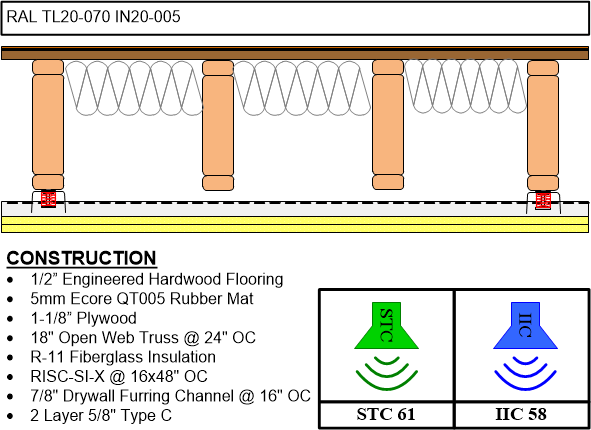

RSIC-SI-X RAL TL20-070 IN20-05 Sound Test

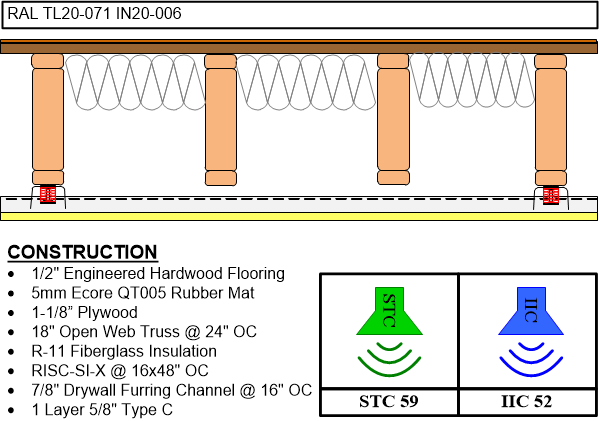

RSIC-SI-X RAL TL20-071 IN20-006 Sound Test

Patent Pending




RSIC-X

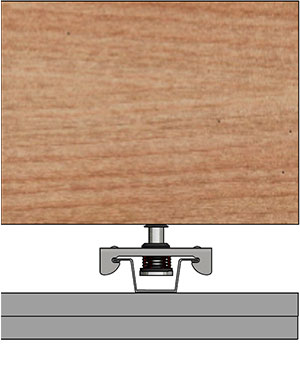

Solid Wood Joist System

RSIC-X

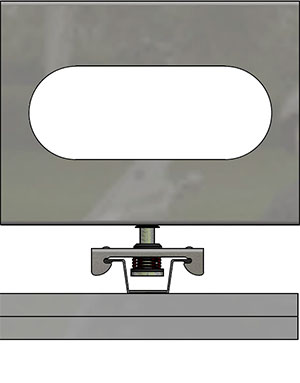

Steel C Section System

RSIC-X

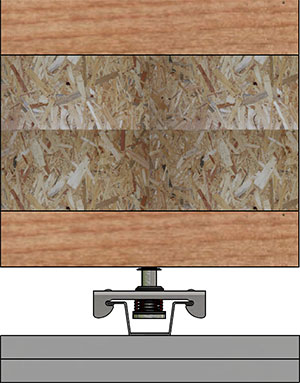

I-Joist System









Verify product application before adding to UL Fire Rated Assemblies
