RSIC-1-ADM WOOD SOUND ISOLATION CLIP
RSIC-1-ADM Wood

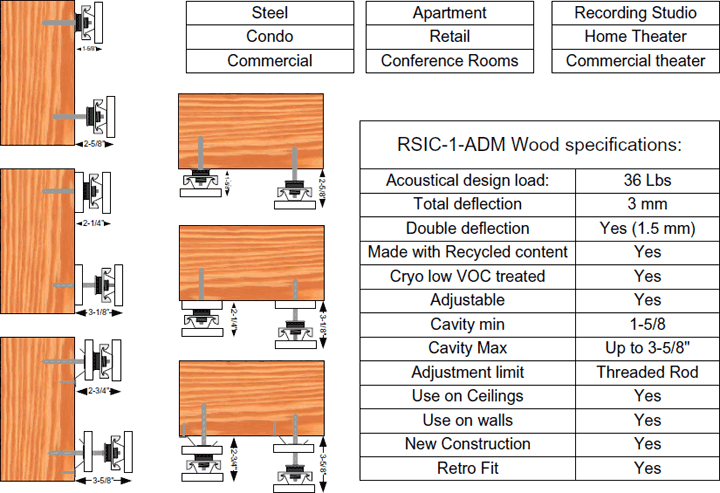

The RSIC-1-ADM Wood clip designed for use with Wood ceilings where noise control is required. The RSIC-1-ADM Wood isolator is a labor saving adjustable mount walls and ceilings. The RSIC-1-ADM Wood isolator can be installed directly to the stud or joist, over direct mounted gypsum board, or over and RC-1 system. With an Acoustical design load rating of 36 lbs per isolator, the RSIC-1-ADM Wood clip can support up to two layers of 5/8" gypsum board when spaced at 24" x 48" oc., and 3 layers when spaced at 16" x 48" oc. The RSIC-1-ADM Wood clip attaches to the bottom of the framing or wall studs decoupling the gypsum board from the structure stopping STC and IIC vibrations from entering the space below.

RSIC-1-ADM Wood Installation Guide

RSIC-1-ADM Wood flier







RSIC-1 ADM Wood, the Low Cost,
High Performance, Noise control Solution



Verify product application before adding to UL Fire Rated Assemblies

RSIC REVOLUTION
