RSIC-1-ADM® Series
RSIC-1-ADM Side Mount

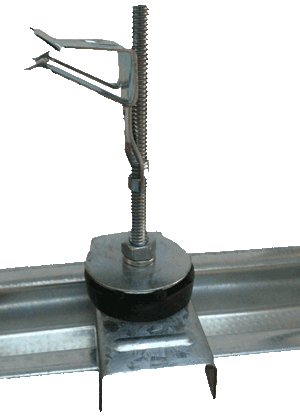

RSIC-1-ADM® Side Mount

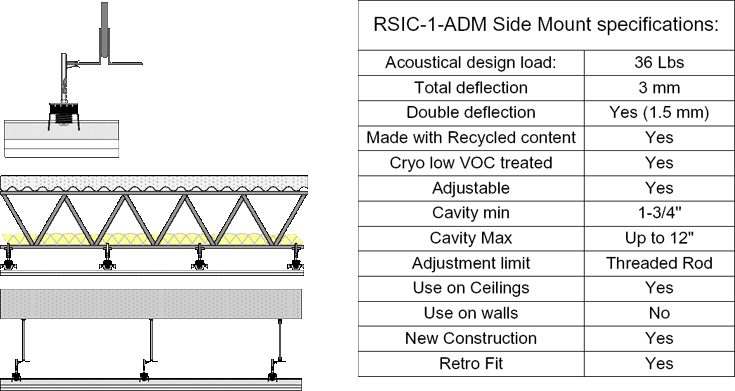

The RSIC-1-ADM® Side Mount clip designed for use with open web steel truss applications where noise control is required. The RSIC-1-ADM Side Mount isolator is a labor saving adjustable mount for steel truss. Hammer on the clip and spin the isolator to adjust up and down for a level ceiling. Secure the side mount with two strands of 18 Ga wire. With an Acoustical design load rating of 36 lbs per isolator, the RSIC-1-ADM Side Mount clip can support up to two layers of 5/8" gypsum board when spaced at 24" x 48" oc., and 3 layers when spaced at 16" x 48" oc. The RSIC-1-ADM Side Mount clip attaches directly to the side of the steel truss decoupling the gypsum board from the structure stopping STC and IIC vibrations from entering the space below.

RSIC-1, the Low Cost, High Performance, Noise control Solution


RSIC-1 ADM Steel Joist Side Mount AKA "Hammer On Clip"

RSIC-1 ADM Side Mount Flyer


Hammer on to steel bar joist, "C" bar joist, or "Z" bar joist for fast and easy installation.



Verify product application before adding to UL Fire Rated Assemblies

RSIC REVOLUTION
